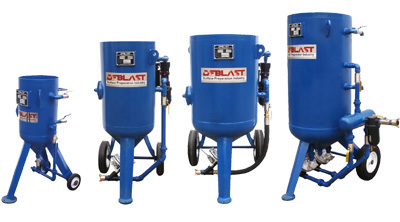

DFBLAST offers a wide range of portable abrasive blast equipment to cope with virtually all types of blasting environment and all the features that the professional user requires. With a guarantee fast filling, unrestricted airflow, easy access for inspection and maintenance design, our high production machines are manufactured to cover all possible requirements of the industry.
A choice of automatic or manually operated machines is available along with a grit valve , the single piece remote control deadman system and silencer giving reduced labour cost, high efficiency of abrasive, performance and operator safety.
DFBLAST equipment offers these unique features: ◆Construction heavy gauge construed pressure vessel fabrication tested to 12 bar with a working pressure of 10 bar. ◆Piping on all machines are 1 1/4, with long life rubber lined parts fitted where necessary.
◆Pop-up valve heavy duty to give quick response to pressurization ◆Concave head and conical bottom allows ease of filling and easy flow of all types of abrasive. ◆Inspection door quick release for ease of inspection and servicing. ◆Abrasive valves full range including flat valve, metering valve, Thompson valve. ◆Mobility all machines mounted on large rugged wheels for easy maneuverability on site. ◆Sieves and covers rugged well designed with handles and optional bag splitter.
MODEL |
CAPACITY [Liters] |
W/ P [Bar] |
DIMENSIONS DIA x H [mm] |
PIPING |
WEIGHT [kgs] |
BPSC50-1 |
20 |
8 |
273X745 |
1/2" |
57 |
BPSC100-1 |
60 |
10 |
350X1140 |
1-1/4" |
78 |
BPSC300-1 |
100 |
10 |
400X1300 |
1-1/4" |
108 |
BPSC300-2 |
150 |
10 |
500X1400 |
1-1/4" |
132 |
BPSC600-1 |
200 |
10 |
620X1333 |
1-1/4" |
201 |
BPDC800-DO |
300 |
10 |
620X1600 |
1-1/4" |
245 |
|
